Hardware and software audio instruments
The software version of MODEL 601 translates the Vienna Audio complex generator into a VST3 instrument. The prototype is designed as a 10x polyphonic version of the system, bringing the MODEL 601 architecture into a software environment while preserving its focus on wavetable transformation, modulation and timbral control.
The video documents the V-PRO function, where a central waveform can be pushed toward two processed extremes and all intermediate timbral states, interacting with the Spike and stretch functions.
Recent Vienna Audio ports developed as independent VST3 instruments and processors, translating the original TouchDesigner prototypes into dedicated real-time DSP systems.

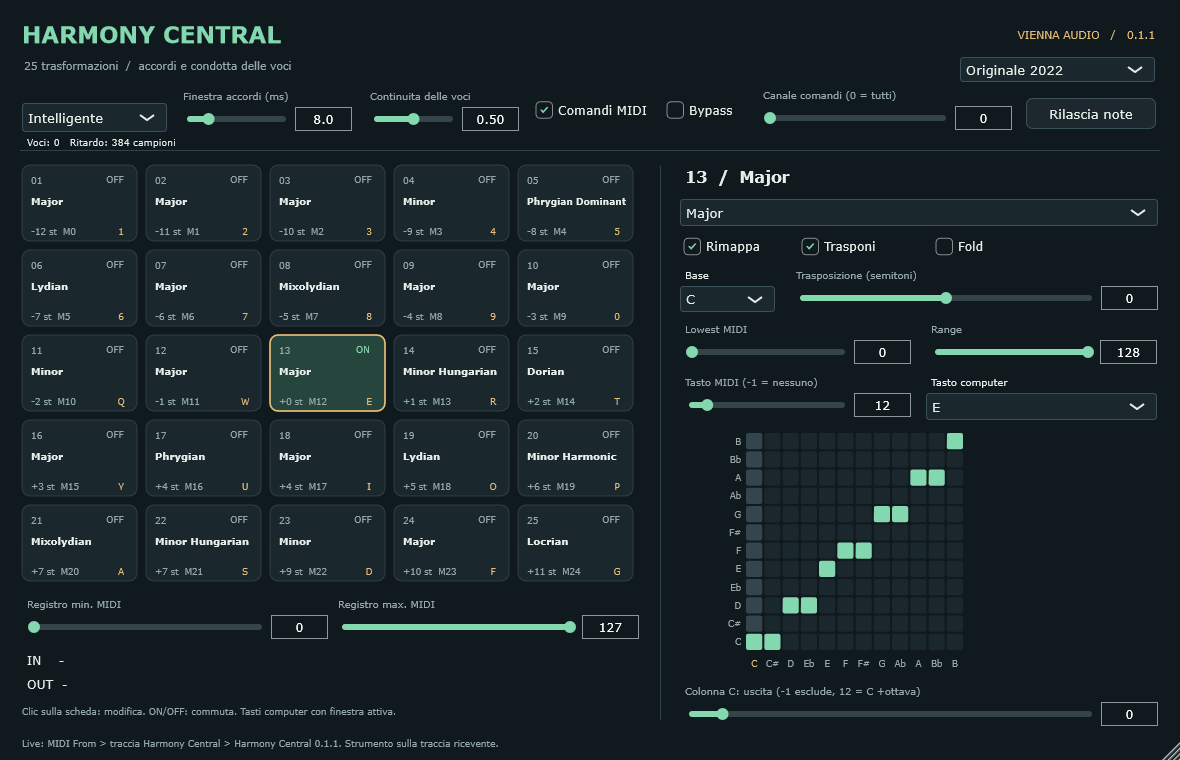

A polyphonic MIDI reharmoniser built from a network of 25 serial transformations. Source and Intelligent modes combine scale mapping, transposition and voice-leading continuity for clips, chords and live performance.
View instrument ->
A neo-Riemannian MIDI generator built around an interactive Tonnetz. P, L and R transformations and their N, S and H compounds drive harmonic paths, while automatic voice leading realises each triad across three to eight voices.
View instrument ->

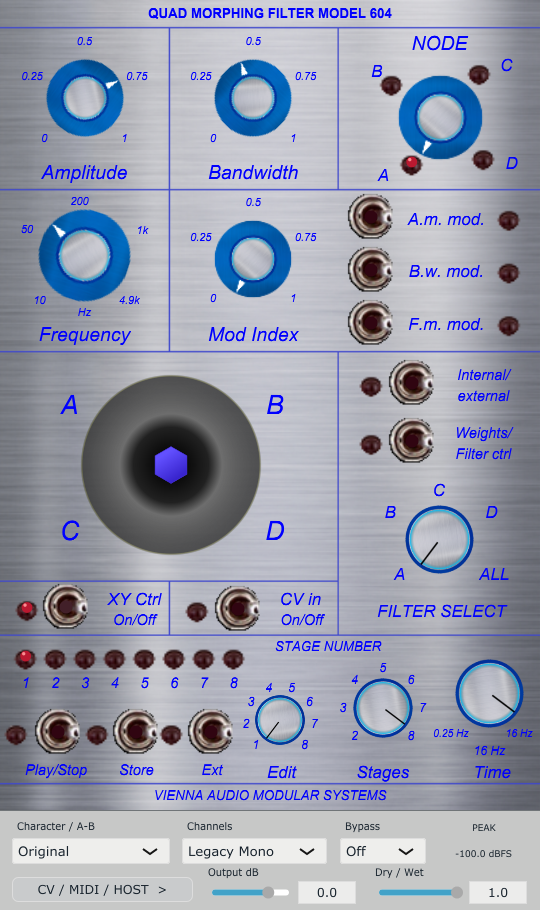

A quad morphing filter processor with four parallel nodes, amplitude, bandwidth, frequency and modulation-index control. A three-dimensional XY stick, staged states and host, MIDI or external control turn the filter bank into a performable timbral space.
View instrument ->

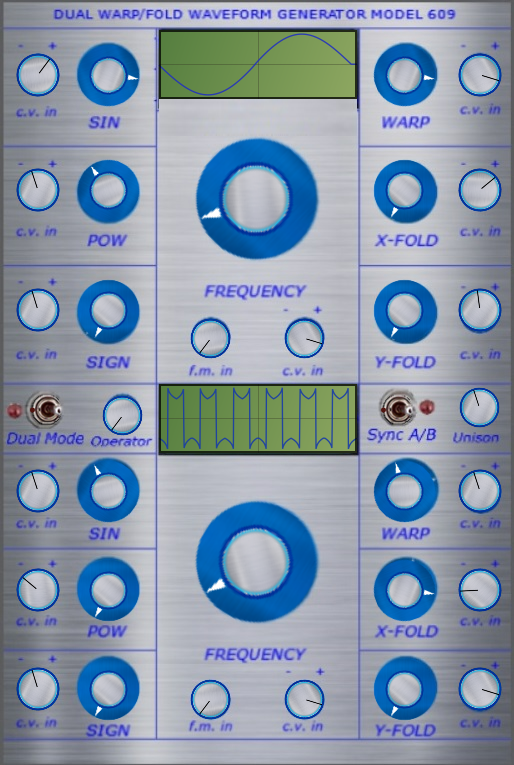

A dual morphing wavetable generator whose two voices combine sine, power and sign shaping with warp and X/Y folding. Visible waveforms, Dual mode, synchronisation and unison make complex spectral transformations directly playable.
View instrument ->

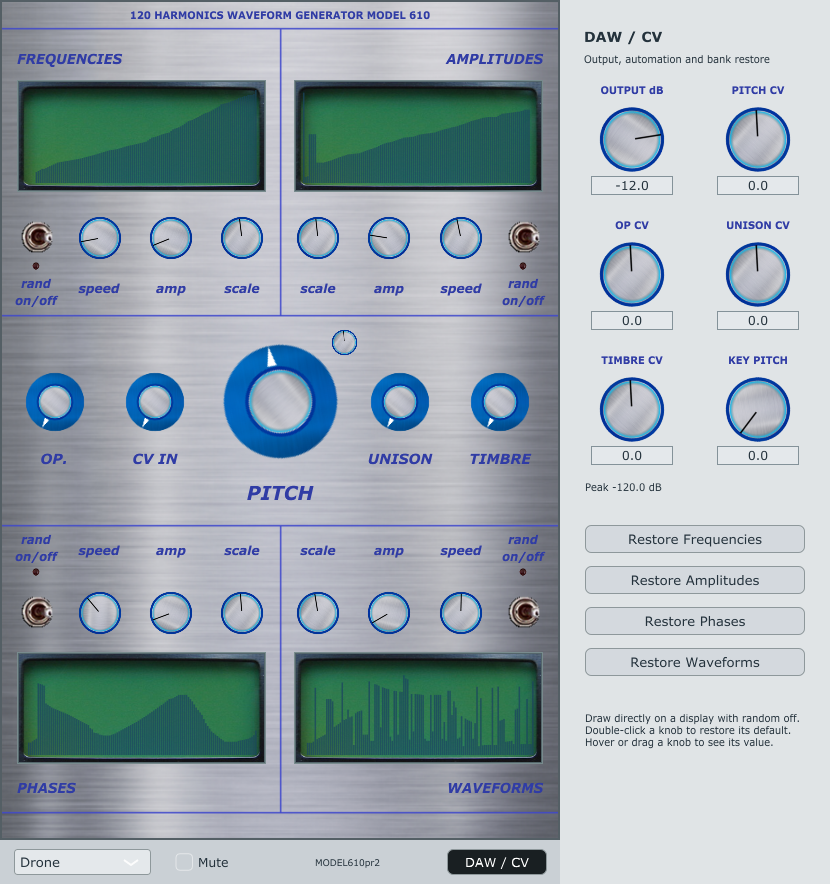

A 120-harmonic waveform generator for composing frequency, amplitude, phase and waveform distributions. Editable maps, controlled random evolution, bank restore and DAW/CV controls shape dense spectra as evolving musical structures.
View instrument ->A list of audio instruments and effects first prototyped in TouchDesigner and later translated into DSP.

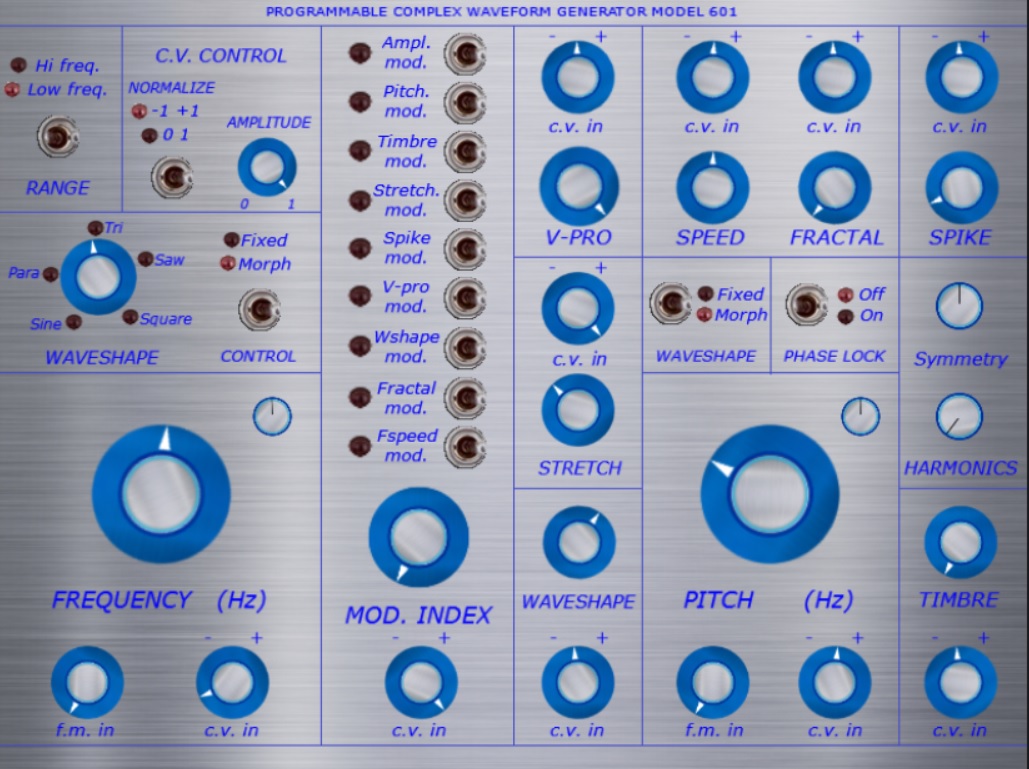

Dual complex wavetable generator inspired by the Buchla 259 lineage, expanded with morphing waveshapes, V-PRO, fractal, spike, stretch and a larger modulation matrix.
View instrument ->

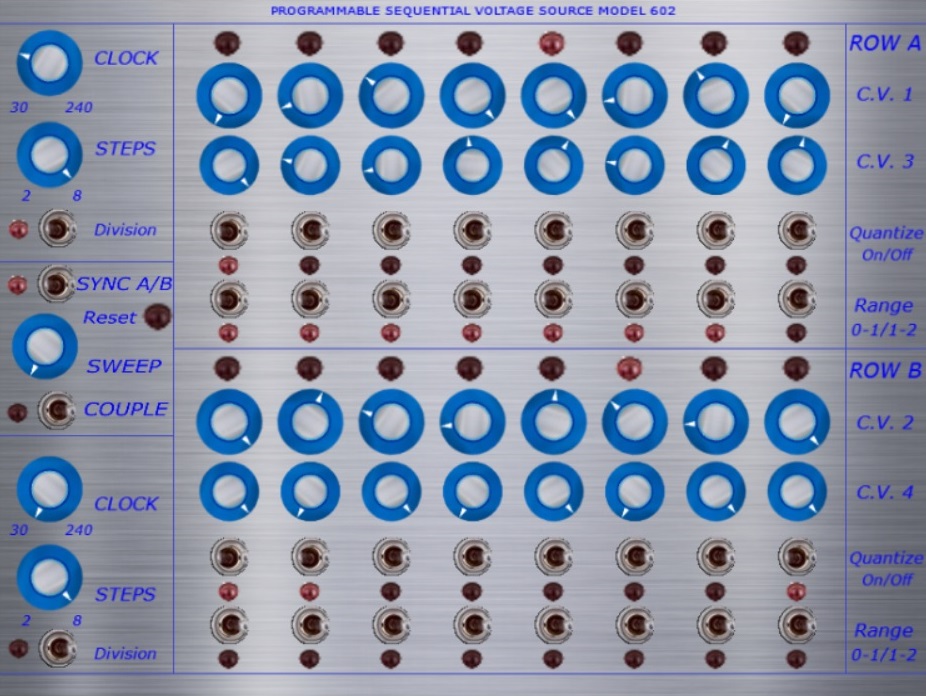

Programmable sequential voltage source with clock, step count, sync A/B, sweep, couple mode and multiple CV rows for melodic, gestural and modulation sequencing.
View instrument ->

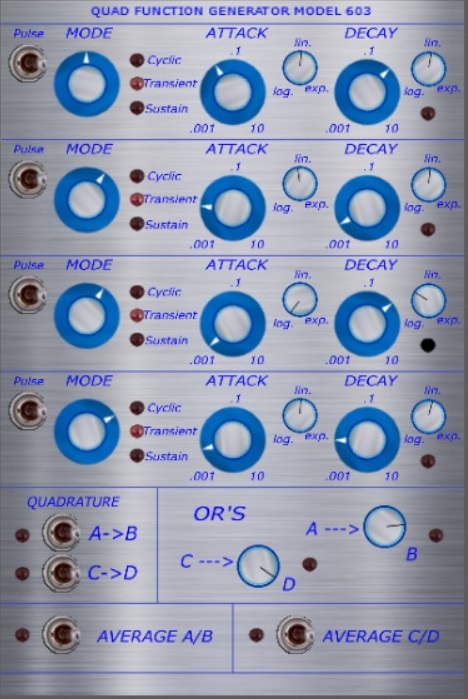

Quad function generator for attack/decay shapes, cyclic modulation, average and cross-output behaviors, useful as envelopes, control curves and rhythmic modulation sources.
View instrument ->

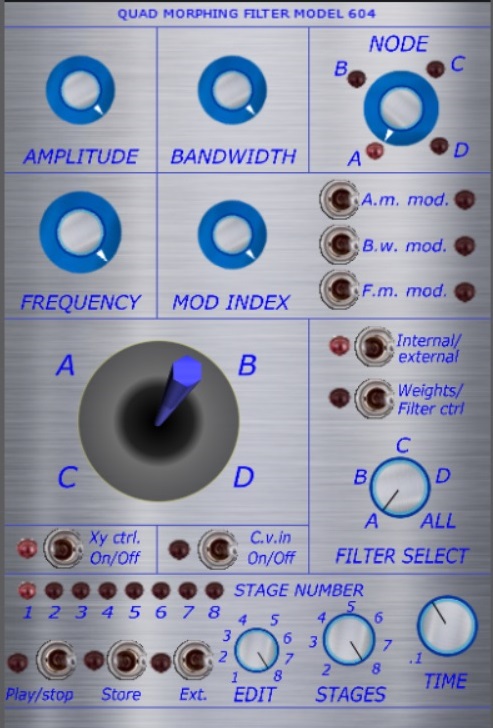

Quad morphing filter module with amplitude, bandwidth, frequency and modulation index controls, designed for animated filtering and staged timbral transformations.
View instrument ->

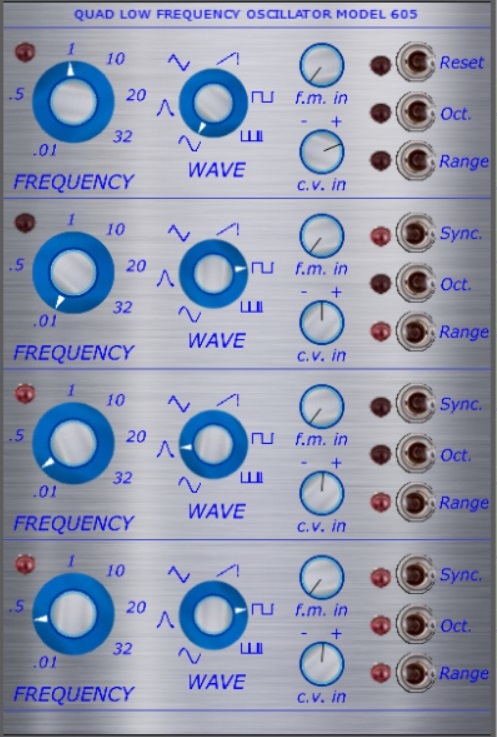

Quad low-frequency oscillator with independent frequency and wave controls, sync/reset options and range switching for slow modulation, rhythmic motion and layered CV movement.
View instrument ->

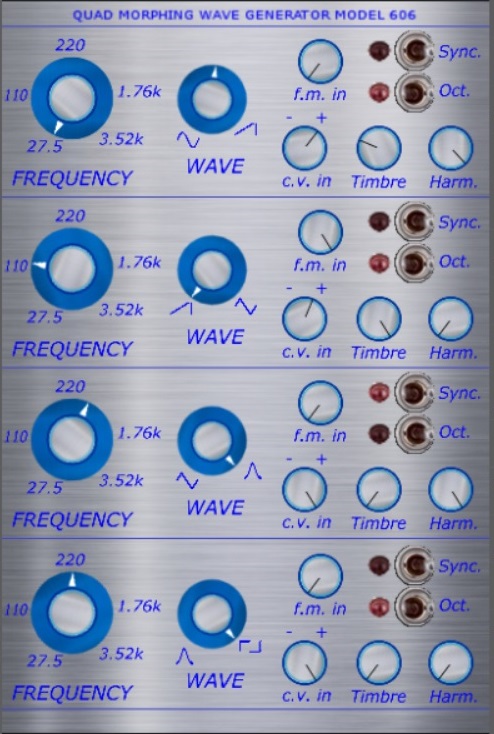

Quad morphing wave generator for control or audio-rate use, centered on frequency, waveform, CV inputs, timbre and sync behavior across four parallel sources.
View instrument ->

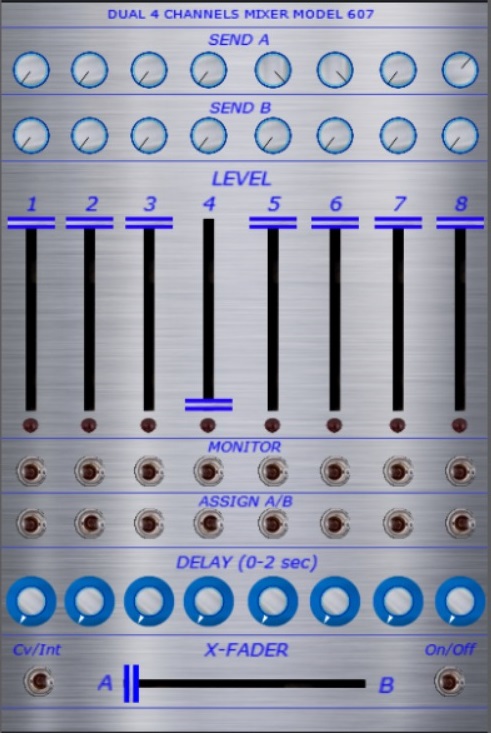

Dual four-channel mix and routing module with send/return style controls, faders, delay send area and X-fader movement between A and B output states.
View instrument ->

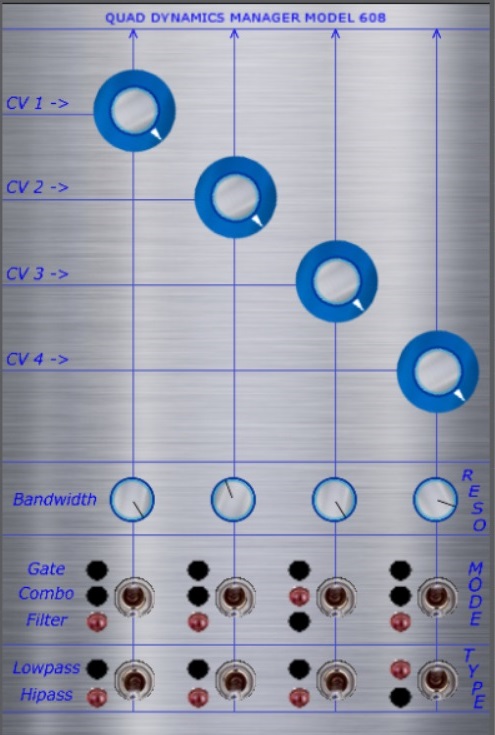

Quad dynamic manager for shaping CV motion, delays and transitions across four control lanes, useful when modulation needs gesture, lag or staged response.
View instrument ->

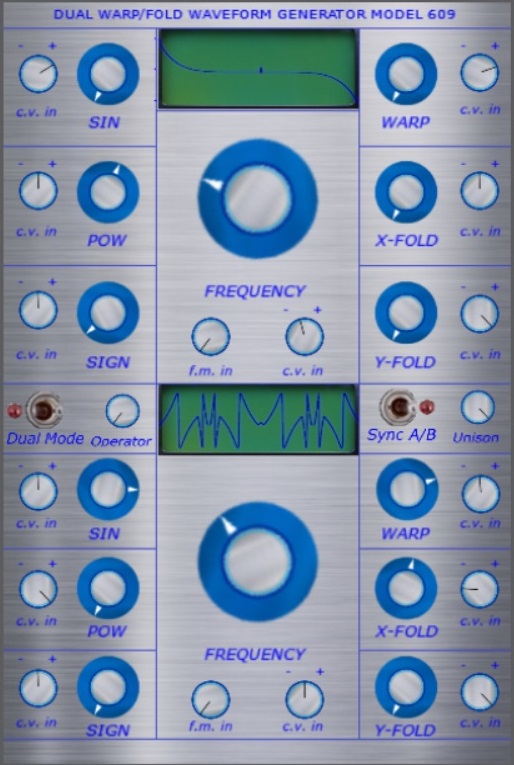

Dual morphing wavetable generator with waveform displays, frequency control, warp, fold, V-Fold/V-Hold and stop controls for animated waveform navigation.
View instrument ->

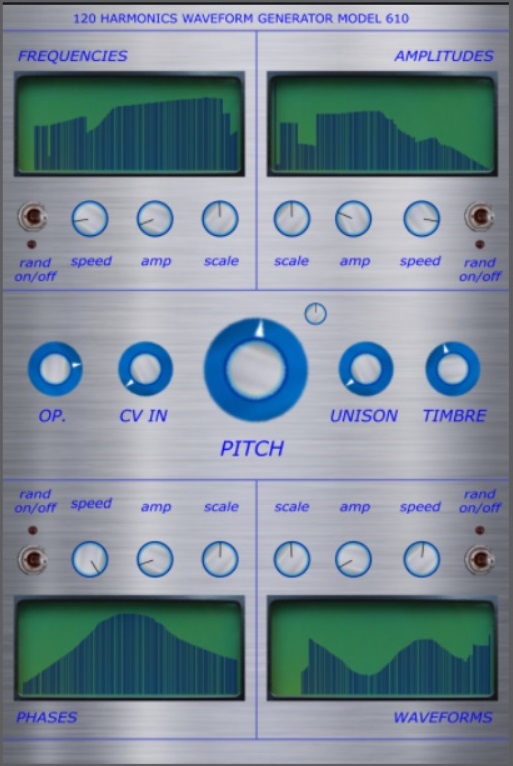

Harmonics processor/generator with frequency and amplitude displays, pitch, unison and timbre controls for shaping overtone relationships and spectral motion.
View instrument ->

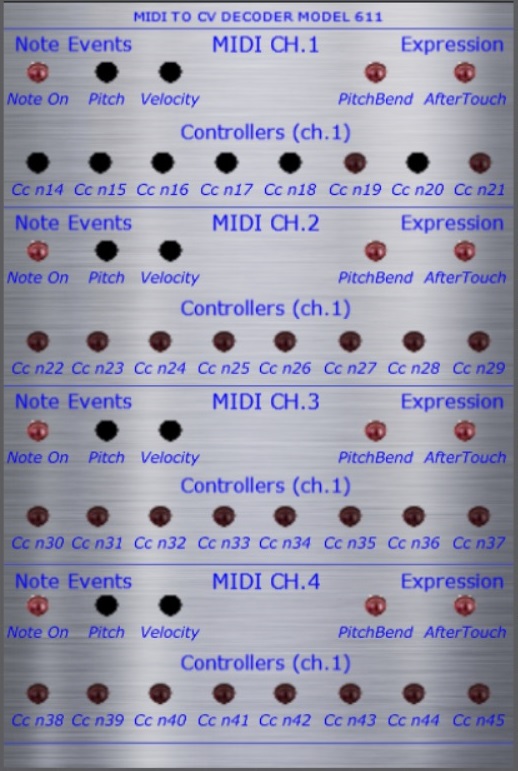

MIDI decoder module mapping note events, pitch, velocity, controllers and expression data across four MIDI channels for hybrid instrument control.
View instrument ->

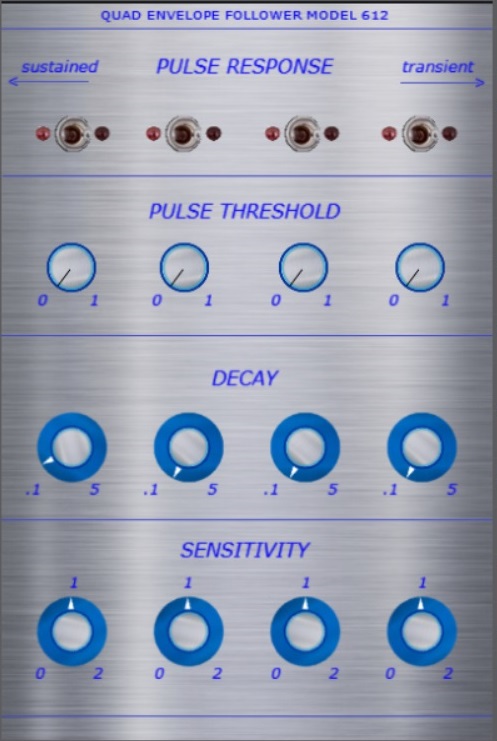

Quad envelope follower with pulse response, threshold, decay and sensitivity stages for turning incoming audio or control dynamics into modulation signals.
View instrument ->

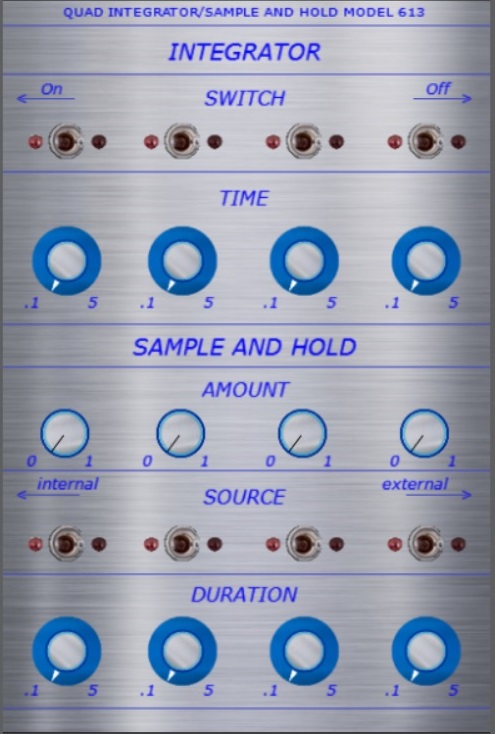

Integrator and sample-and-hold utility for smoothing, holding and deriving control values, with switch, time, amount, source and duration sections.
View instrument ->

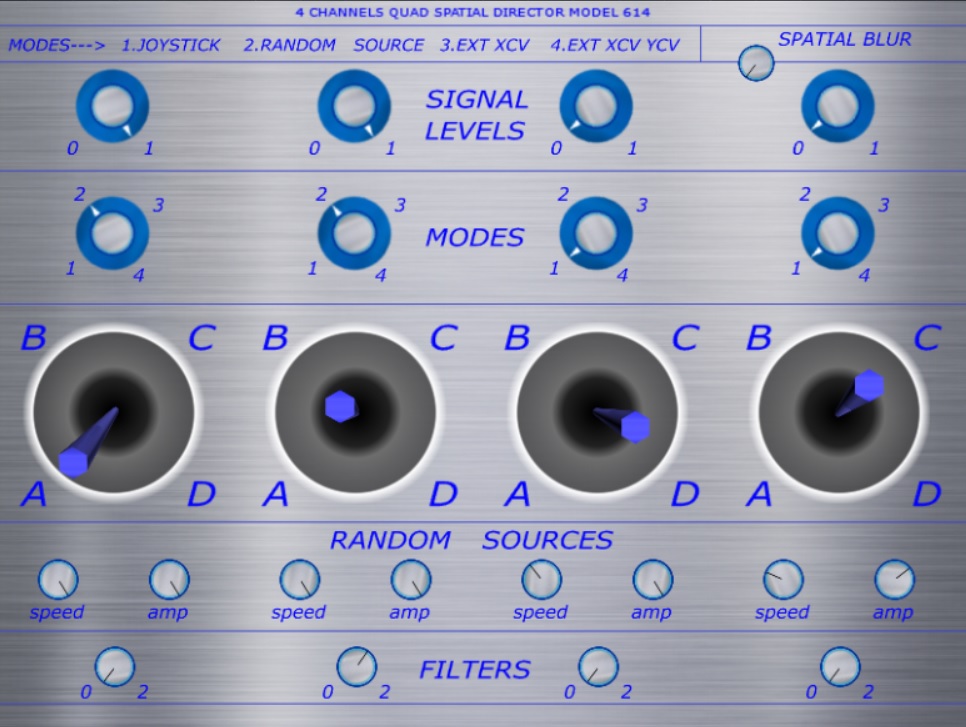

Spatialization module for quadraphonic and octaphonic systems, designed to distribute sound sources through multichannel speaker layouts with performable motion and CV-controllable spatial behavior.
View instrument ->

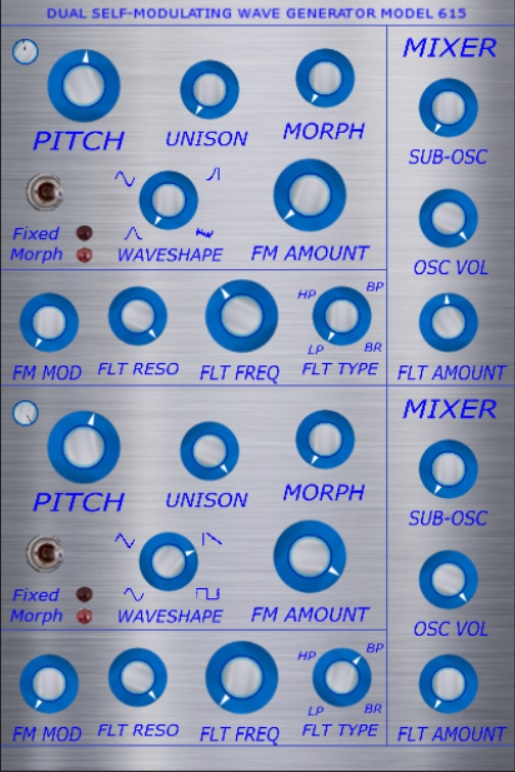

Dual oscillator and mixer voice block with pitch, unison, morph, FM amount, filter controls and sub-oscillator routing for compact layered sound sources.
View instrument ->

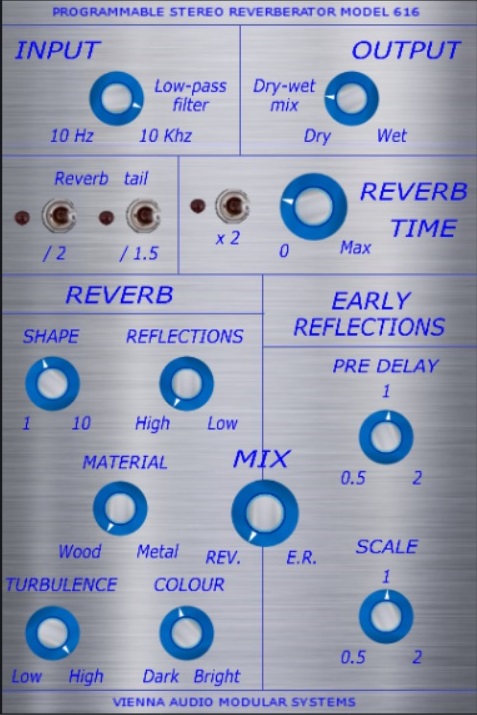

Reverb and early-reflections processor with input/output stages, reverb time, pre-delay, mix, size/scale and color controls for spatial processing.
View instrument ->

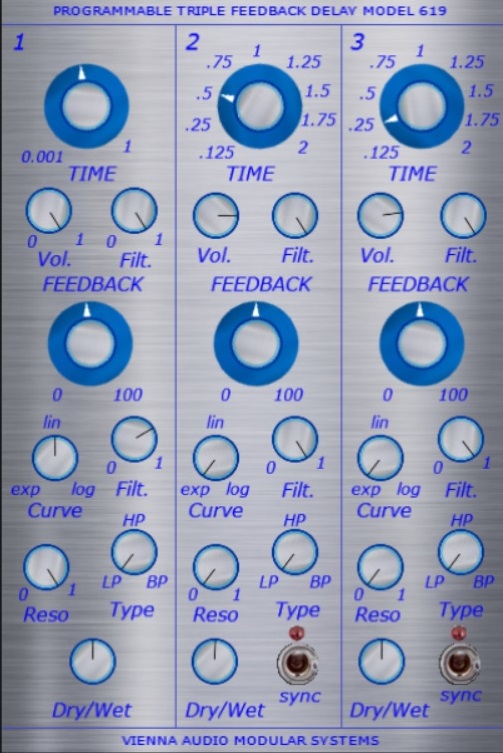

Programmable triple feedback delay with time, feedback, filter/cutoff, dry/wet and type controls across three delay lanes for rhythmic spatial echoes.
View instrument ->

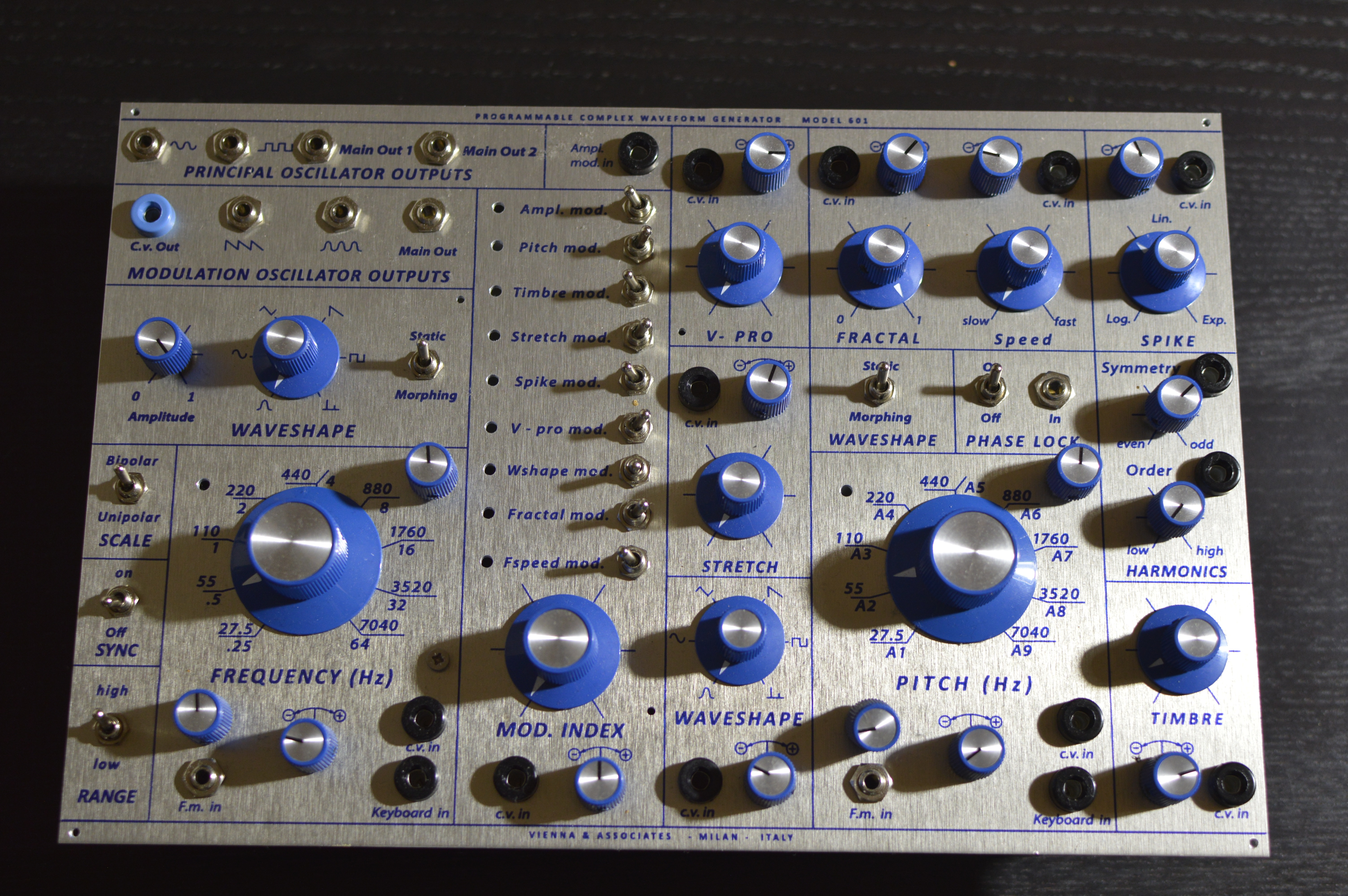

MODEL 601 is the hardware version of the Vienna Audio programmable complex waveform generator, built around oscillator outputs, modulation routing, waveshape control, V-PRO, fractal, stretch and spike sections for hands-on timbral design.

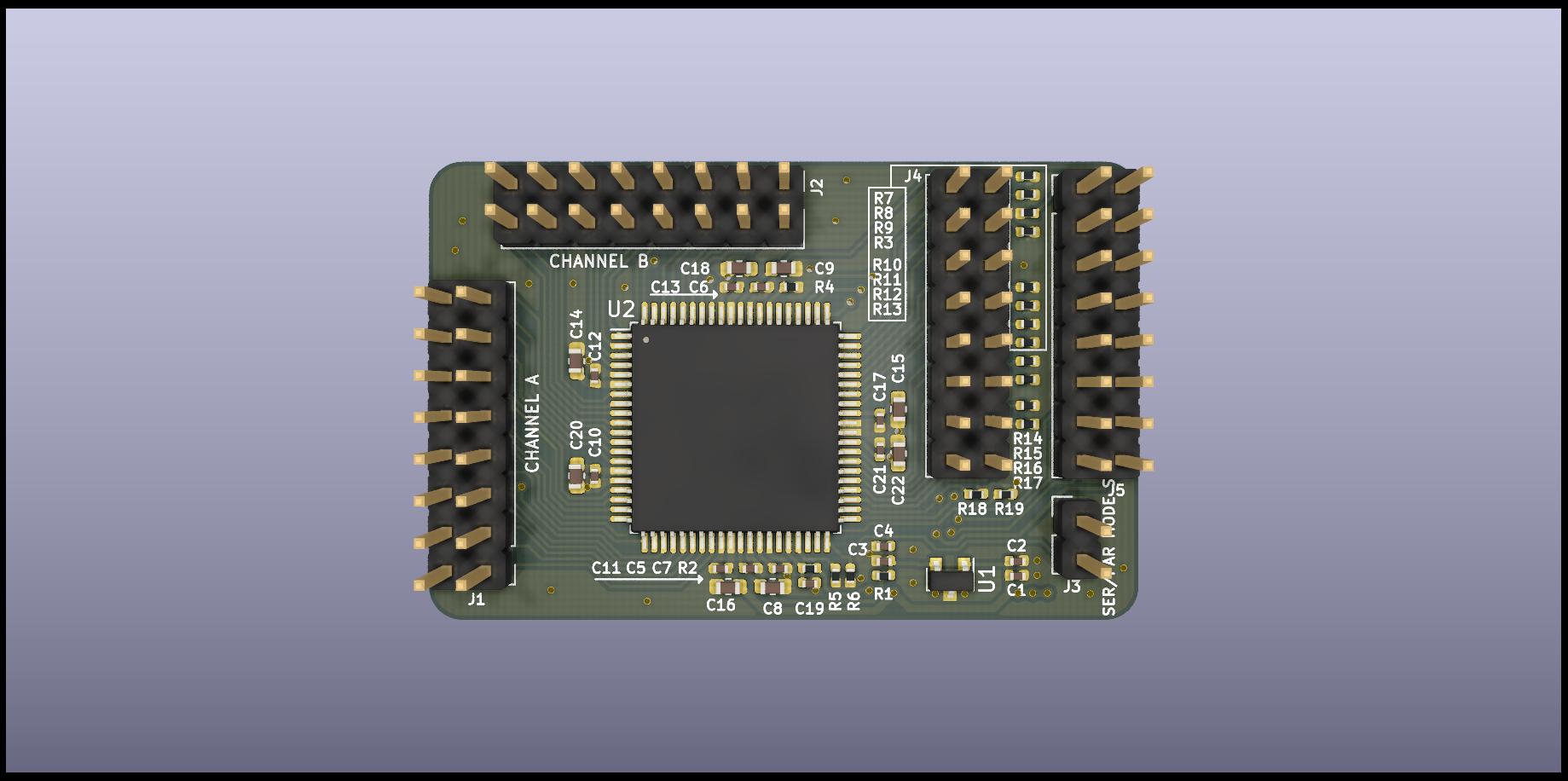

AD7616 Board is an analog acquisition board for the hardware instrument ecosystem, designed to collect multiple control and voltage sources and route them toward digital processing, calibration and instrument-state management.

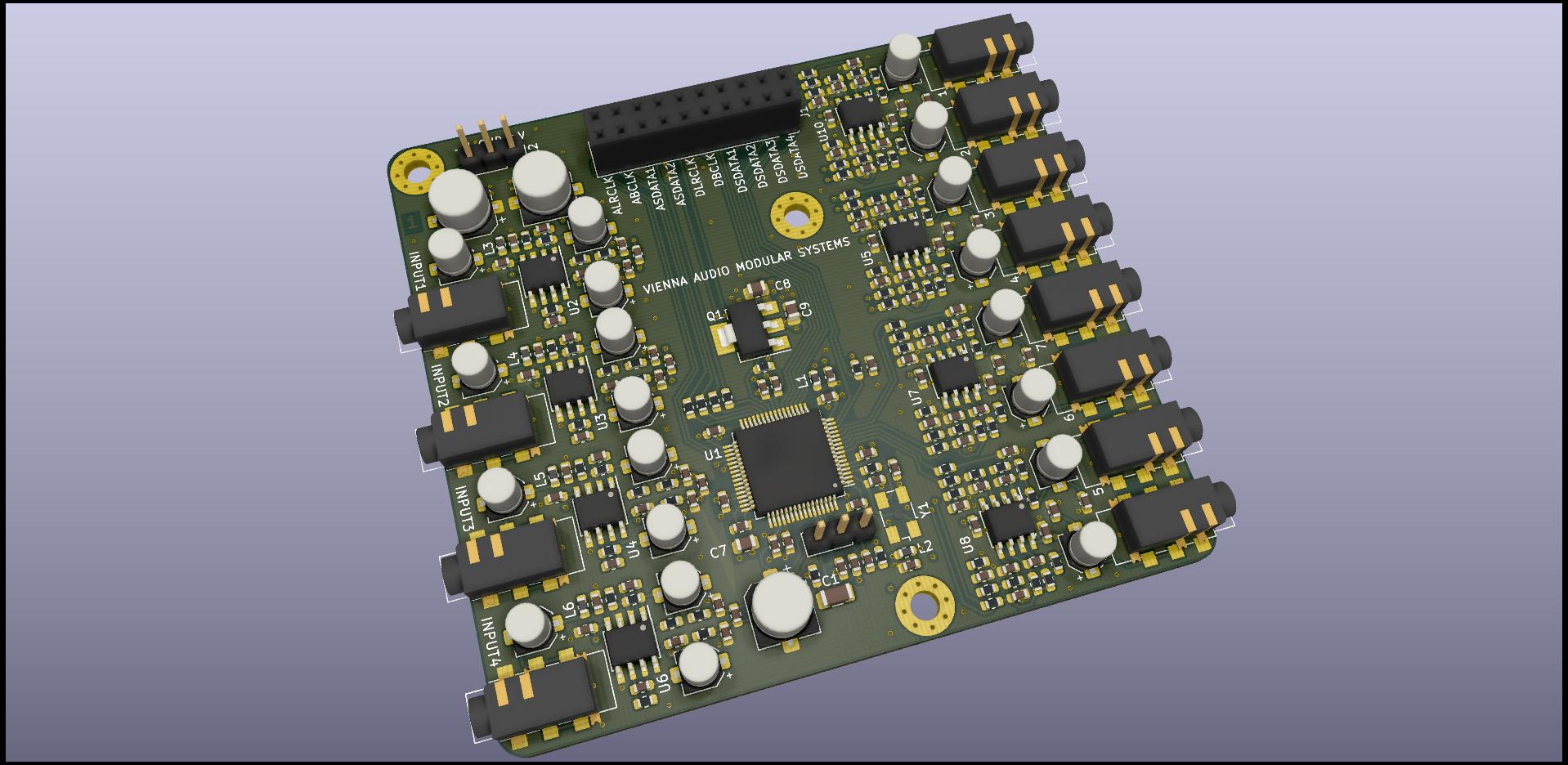

AD1937 Audio codec board is the multichannel audio conversion stage for the hardware platform, connecting the instrument electronics to digital audio routing, codec configuration and future DSP-based processing chains.
